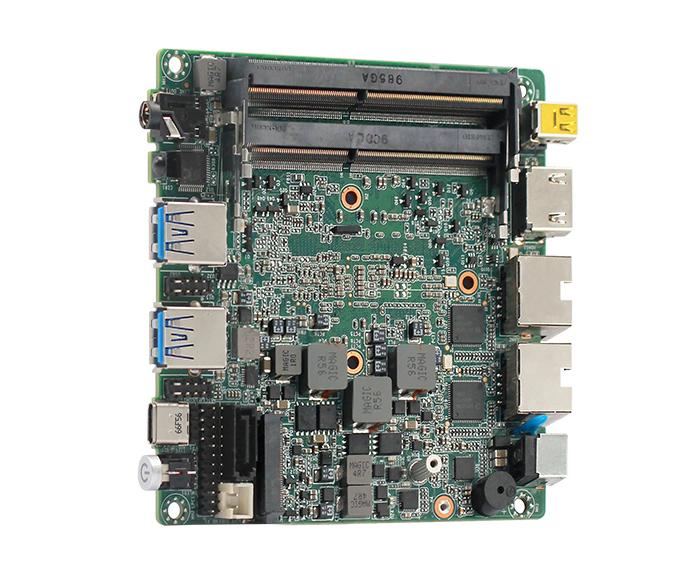

WK310CA

Model : WK310CA

Description :
◆ Whiskey Lake-U Celeron,Core i3/i5/i7 series CPU;
◆ 2 *DDR4 SODIMM 260 Socket;
◆ 1*HDMI2.0,1*MINIDP 1.4(support DP++);
◆ 2*USB3.1 GEN2,1*TYPE-C(USB3.1 GEN2) ;
◆ 2*INTEL I211/I210 Gigabit Etherne;
◆ support PCIE X2 NVME M2 HDD;
◆ support 5V SMART FAN;
◆ support DC 12-19V Power Supply;

Product recommendation

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen
  • Product details
  • Specification parameter
  • File download

◆ Adopt Whiskey Lake-U  Celeron,Core i3/i5/i7 serial processor;

◆ 2 *DDR4 SODIMM 260 Socket;

◆ 1*HDMI2.0,1*MINIDP 1.4(support DP++);

◆ 2*USB3.1 GEN2,1*TYPE-C(USB3.1 GEN2) ;

◆ 2*INTEL I211/I210 lan port;

◆ support PCIE X2 NVME  or SATA signal 2242 M2 hard disk with SATA signal (choose one);

◆ support DC 12-19V power supply;

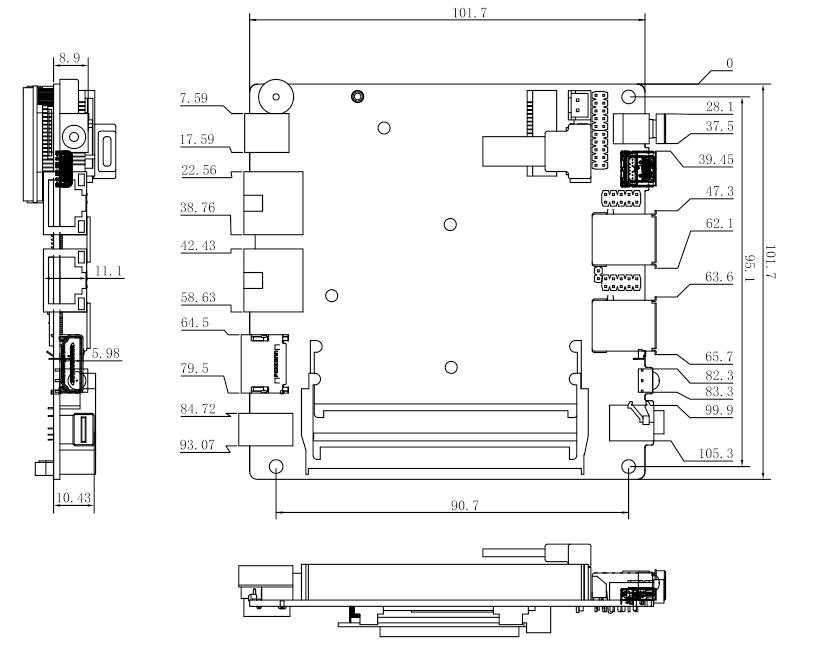

◆ size 101*101mm;


+
