Case

Name

Q-BOX-7

Colour

Blue

Size

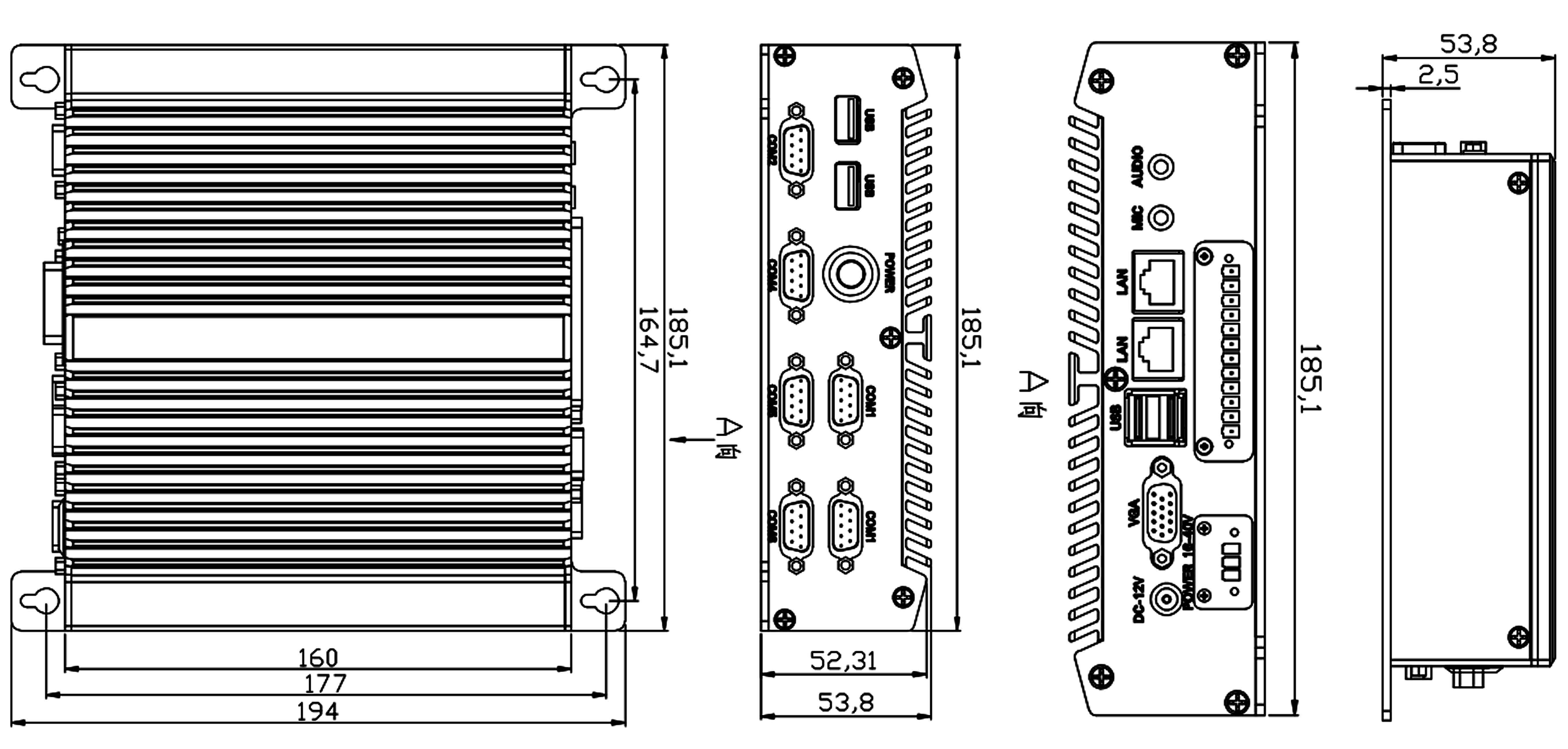

185.2*194*63.5

Material

6063

Motherboard

Chipset

NM/10

CPU

Onboard Intel Atom D2550 processor

Memory

Onboard DDRⅢ 2GB/4GB memory

Graphics

Integrated Intel GMA3600 Graphics

Audio

Integrated Realtek ALC662 HD

Expansion Socket

1*MINI-PCIE socket，can add wifi、3G module

1*MINI-SATA socket，can add SSD

Storage

HDD

2.5inch HDD

SSD

SSD

Function

Display Outputs

VGA、HDMI

Network Outputs

2*Realtek 81111 EL(1000M LAN)

COM

5*RS232、1*RS422/485

USB

4*USB2.0

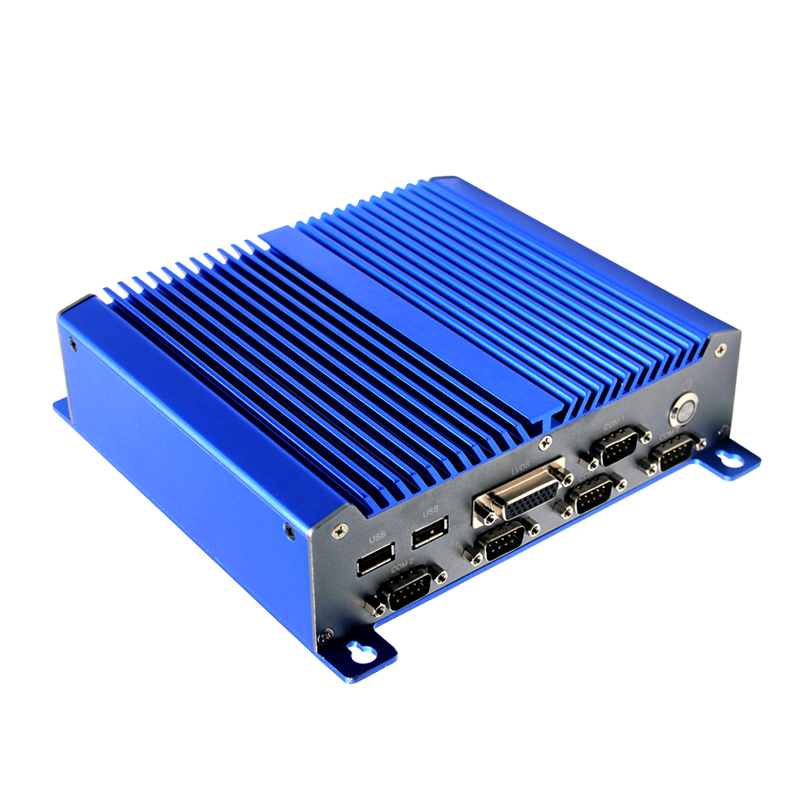

Front I/O ports

1*Power Switch、5*RS232、1*RS422/485、2*USB2.0

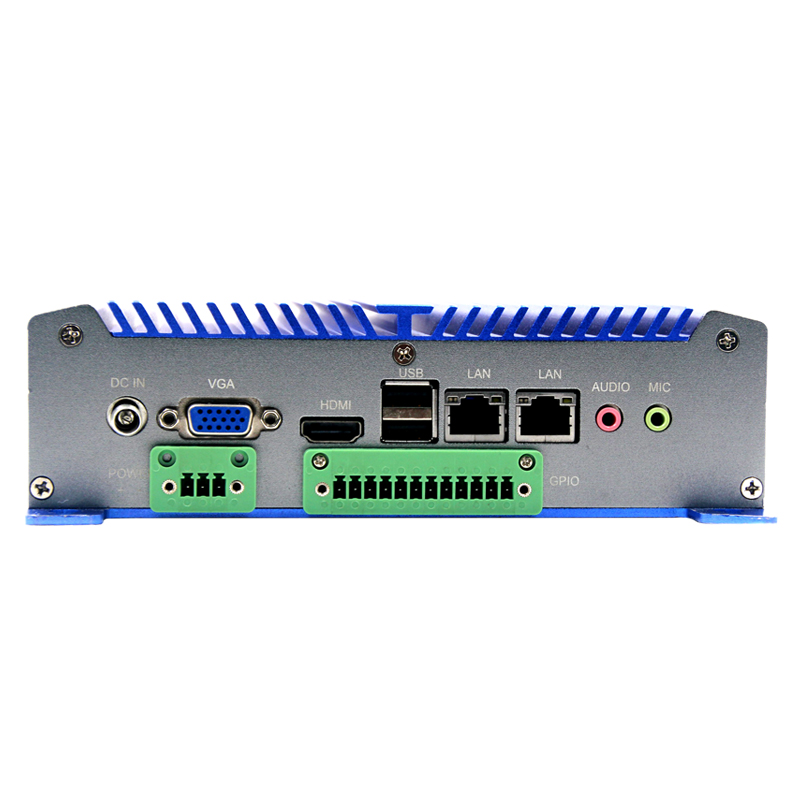

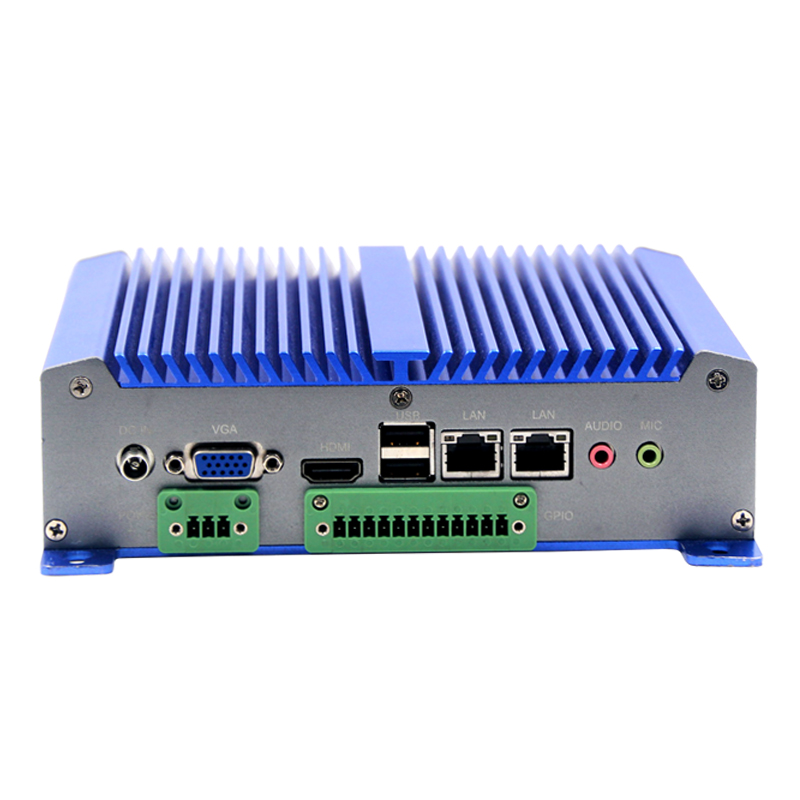

Rear I/O ports

2*USB、2*LAN、1*MIC、1*AUDIO、1*VGA、1*HDMI、1*DC12V power interface、1*16-40Vwide voltage power supply、1*GPIO

Working temperature

-10~60℃

Operating System

WindowsXP，Windows7、linux

Power Supply

DC12V and 16-40V wide voltage power supply（optional)

Model

Description

CPU(Optional)

SW2825

Integrated NM10 chipset

Integrated Intel Atom D2550 processor,dual core 1.86G

Onboard 2G or 4G memory，6*COM ports，8*USB

N2800（TDP）6.5W
