Case

Name

Q-BOX-17A

Colour

Black

Size

214.5*200*52

Material

6063

Motherboard

Chipset

Intel single chipset

CPU

Onboard Baytrail-I/D/M series CPU

Memory

Onboard DDRⅢ 2GB/4GB memory(With 1* RAM slot to max. 8Gb RAM）

Graphics

Integrated Intel HD Graphics

Audio

Integrated Realtek ALC662 HD

Expansion slot

2*MINI-PCIE socket，can add wifi、3G module

1*MINI-SATA socket，can add SSD

Memory

HDD

2.5inch HDD

SSD

SSD

Function

Display Outputs

HDMI、VGA

Network Outputs

1*Realtek 81111 EL(千兆网卡)

COM

5*RS232、1*RS422/485

USB

7*USB2.0、1*USB3.0

Front I/O ports

1*Power Switch、

1*Reset Switch、

1*HDD&Power indicator light、

1*COM、

4*USB

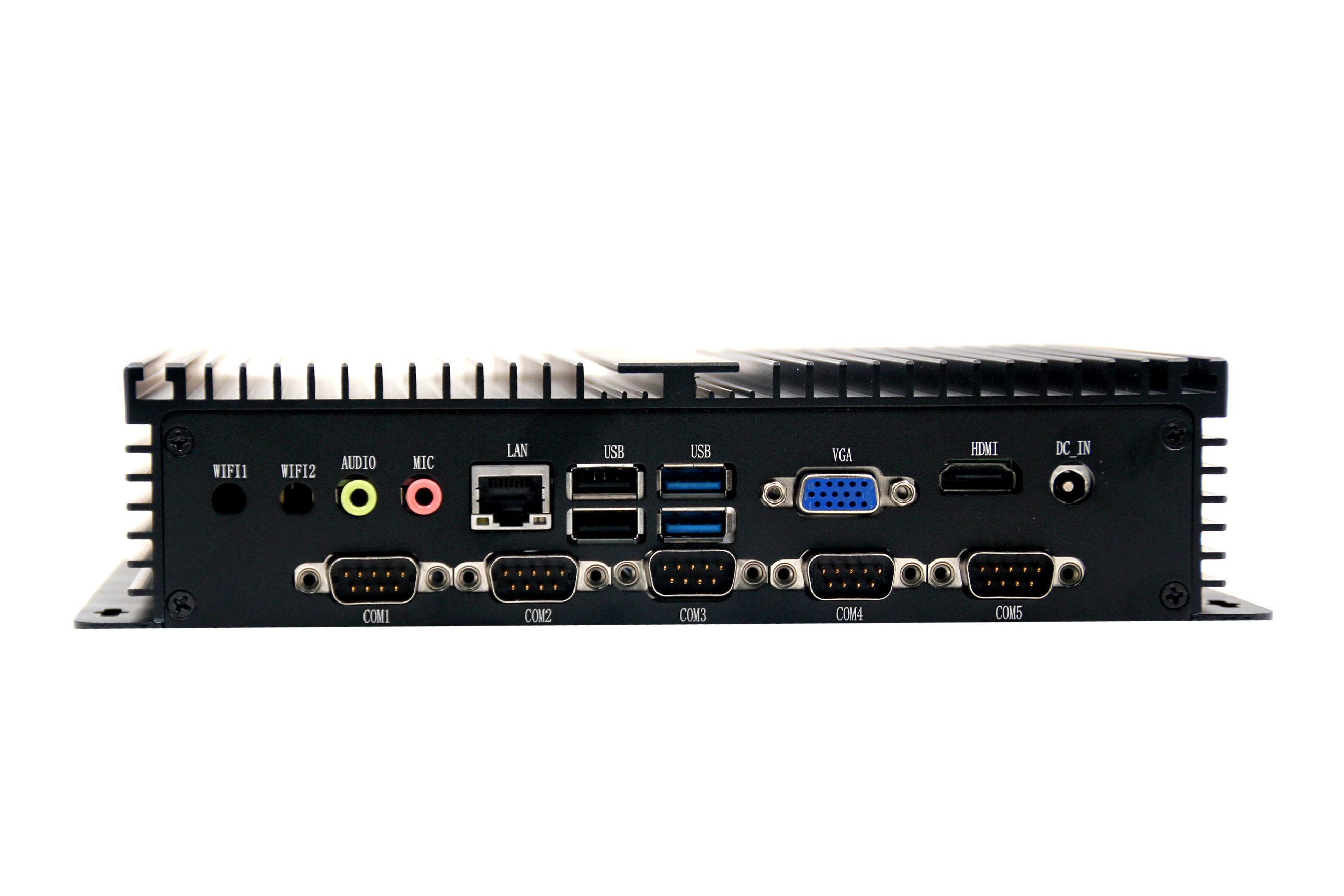

Rear I/O ports

5*COM(COM3 for RS422/485)、

4*USB、

1*LAN、

1*MIC、

1*AUDIO

DC-12V、

1*VGA、

1*HDMI

Working temperature

-20~60℃

Operating System

Windows7、Windows8、Windows8.1、Windows10、linux

Features

•Light and Compact Embedded system design,Support Intel Baytrail-D/I/M series processor；

    •Onboard DDRⅢ 2GB/4GB memory，Fanless/Noiselessness Design,High Stability;

    •Mini-PCIE socket，support wifi module，SIM Card socket，Support 3G module；

•Rich I/O ports，include 8*USB ports、6*COM ports、1*VGA、1*HDMI

•12V DC Design(can choose wide voltage version），Simple power supply

Power Supply

Default 12V DC Single input DC power supply(power-on automatic startup from Hardware，can choose wide voltage version)

CPU

Quad core J1900;N2900

Or Dual core J1800;N2800；Mostly Inventory is J1900

Memory

Onboard 2G or 4G,maximum up to 8GB

Hard Disk

M-SATA or HDD SATA
