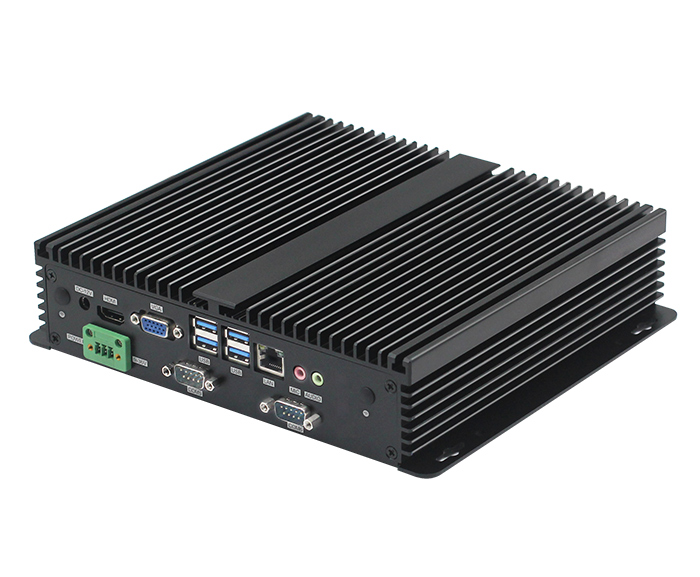

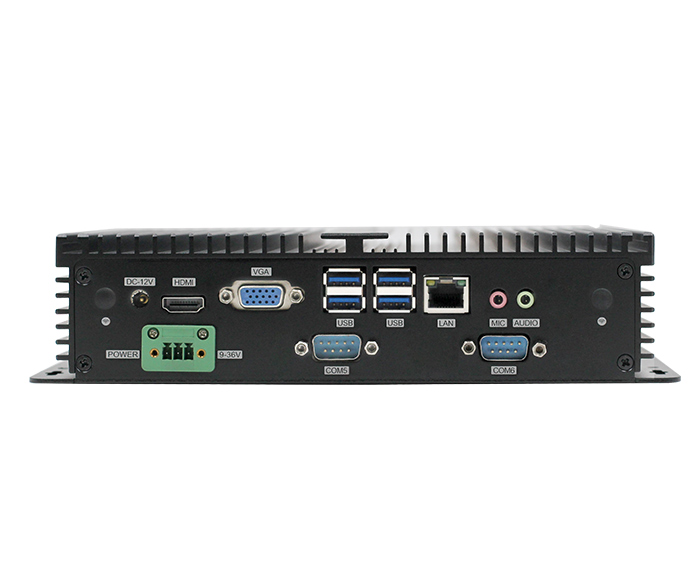

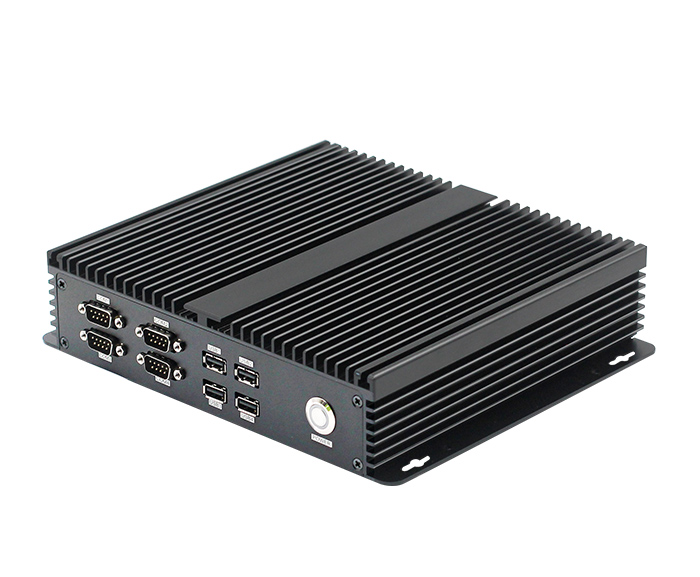

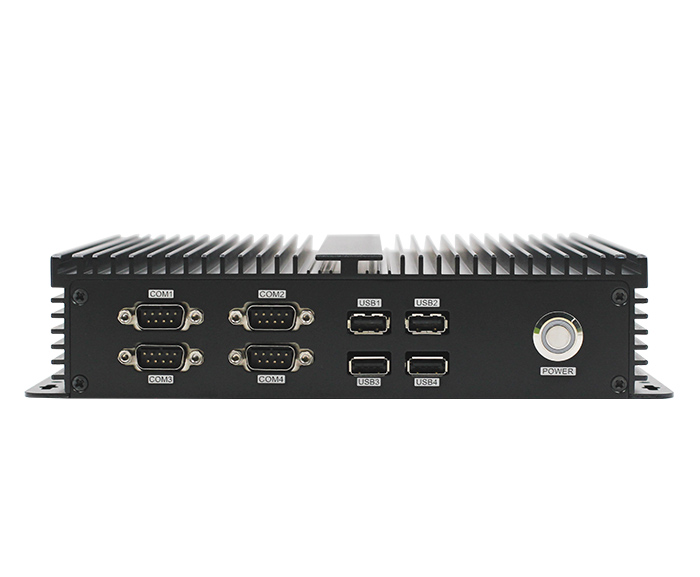

Q-BOX-M(TOP77)

Model : Q-BOX-M(TOP77)

Description :
◆ Onboard CPU,support Intel Mobile 2nd、3rd i3-i5-i7 processor for Optional ;
◆ 1*DDR3 SODIMM 204 Socket,Max up to be 8GB DDR3,1066/1333/1600MHz;
◆Onboard 1*Gigabit Ethernet;
◆ 4*RS232,2*RS422/485;
◆ Support power-on automatic startup function, jumper selection;
◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional);

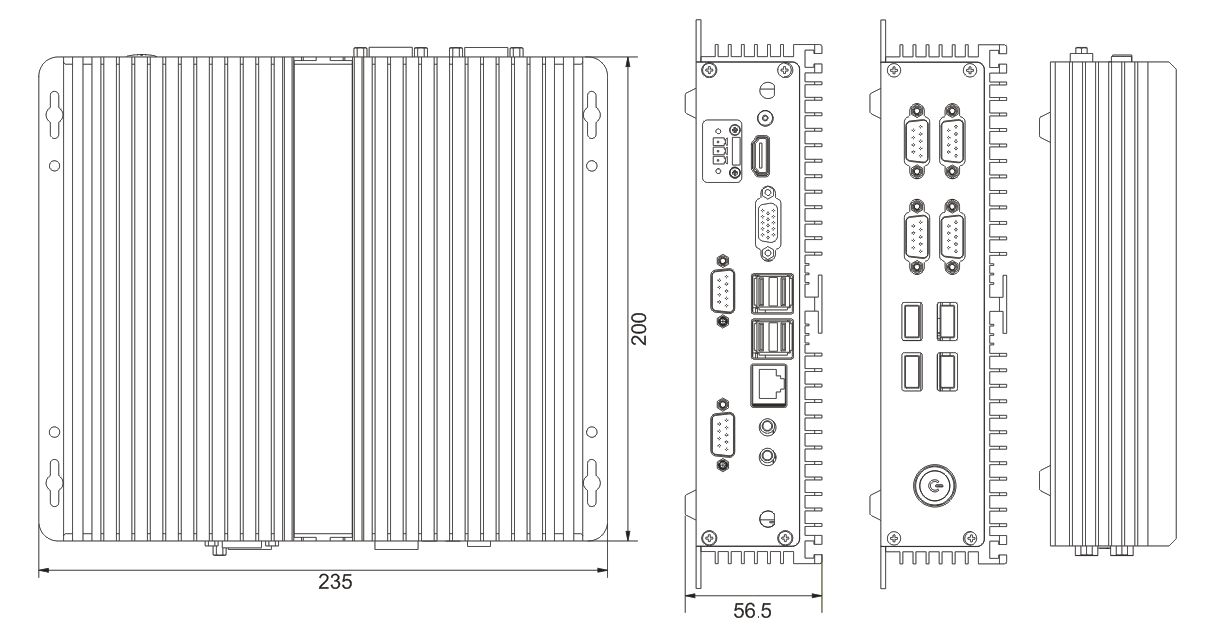

◆ Size:235*200*56.5mm ;

Product recommendation

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen
  • Product details
  • Specification parameter
  • File download

◆ Onboard CPUsupport Intel Mobile 2nd3rd  i3-i5-i7 processor for Optional

◆ 1*DDR3 SODIMM 204 SocketMax up to be 8GB DDR31066/1333/1600MHz

◆Onboard 1*Gigabit Ethernet

◆ 4*RS2322*RS422/485

◆ Support power-on automatic startup function, jumper selection

◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm

+
