Q-BOX-S1-Q-BOX Series-Shenzhen ZunSia Intelligent Technology Co., Ltd.

◆ Support Intel Braswell serial processor ；

◆ onboard 2G\4G memory；

◆ Onboard 16/32/64/128G EMMC（optional）；

◆ 6*RS-232 or 4*RS232，2*RS422/RS485(either one or the other one out of two）

◆ Providing 1*VGA,1*HDMI；

◆ DC12V Power supply；

◆ size :236*176*85mm ；

Specification

Model	Q-BOX-S1
size	23617685mm
Processor	Support Intel Braswell serial CPU
Chipset	Intel Braswell single chip set
System support	Windows7 Windows10 Linux
Ram socket	Onboard 2G\4G Memory
Lan Port	onboard 2*Intel i1211 AT Lan Port
Audio	Onboard HDA ALC662
Storage equipment	1Mini-SATA 1SATA3.0 1*SATA_HDD
Color	sliver

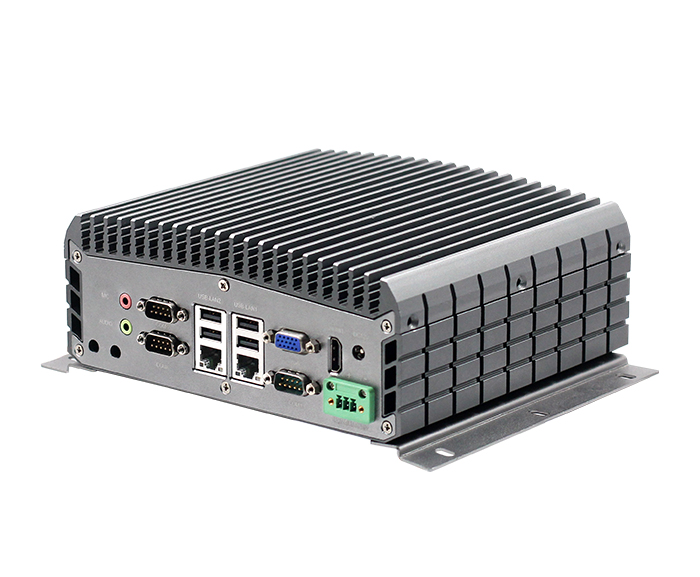

front panel Interface	2LAN 1HDMI 1VGA 3COM(RS232) 4USB2.0 1DC 1MIC-IN 1LINE-OUT 2*WIFI antenna Interface

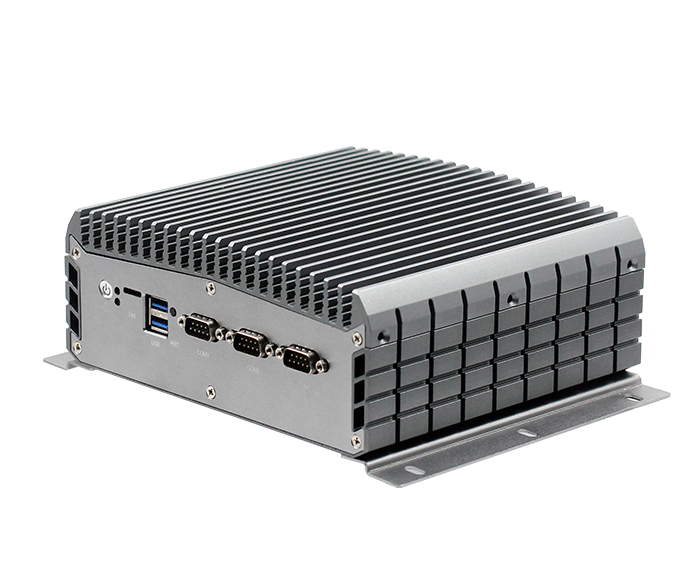

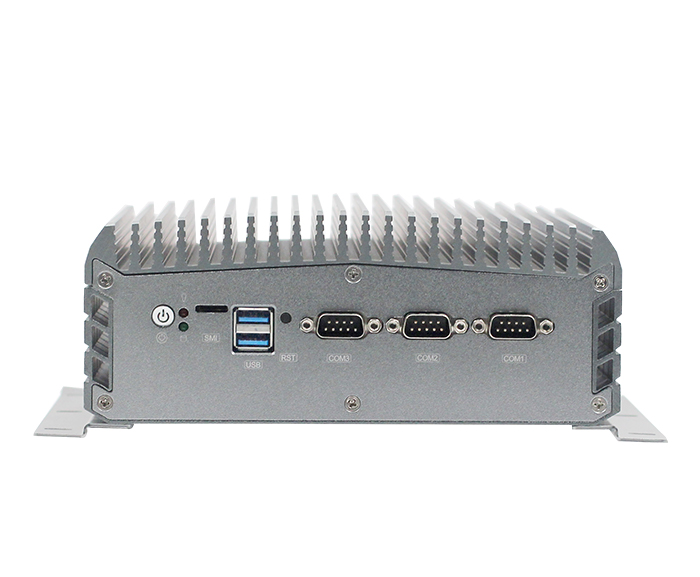

Back panel interface	1* fast switch button with indicator light 1* power indicator light 1* hard disk indicator 2USB3.0 3COM (1 RS22, 2 RS422/485 or 3 RS232) 1*SIM card slot

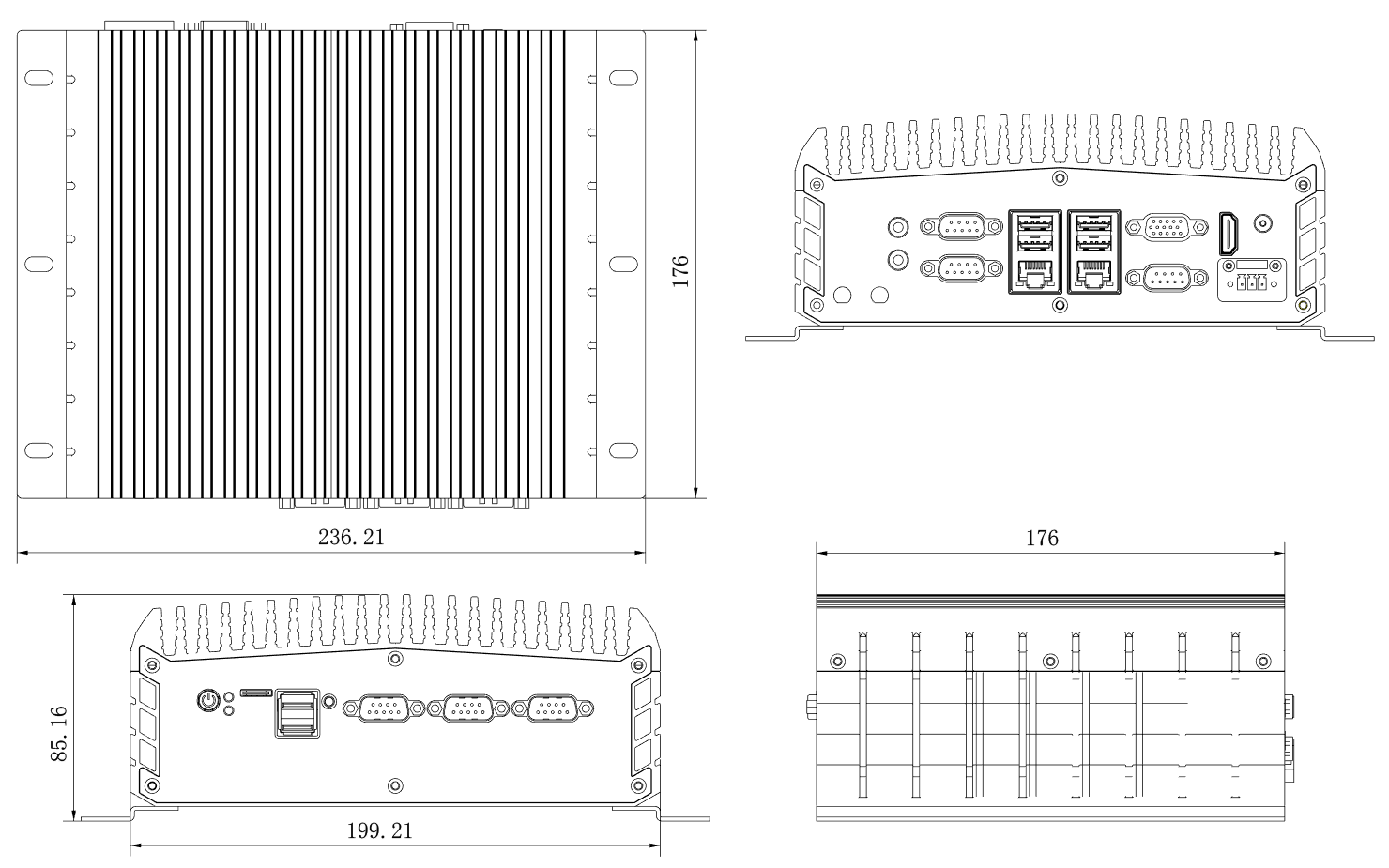

Size

Order information

Model

description

CPU optional

ITX37B

Support Intel Braswell serial CPU

N3160

Q-BOX-S1
