Model

Q-BOX-W1

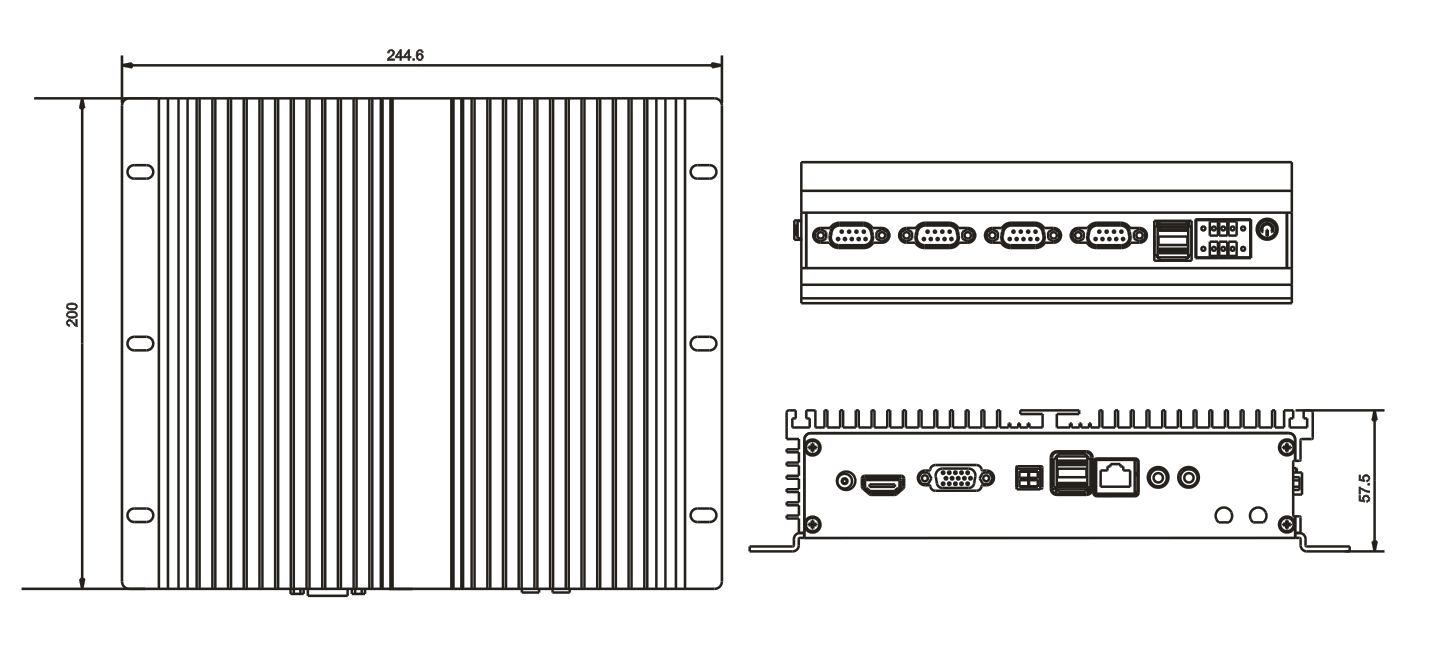

size

224.6*200*57.5mm

Processor

Based on Intel Atom D2550+NM10 high speed chipset, with Intel

Cedar Trail-D Atom dual core D2550 Processor (32nm,1.86GHz,1MBL2 Cache)

Chipset

NM10 high speed chipset

Operate system

Windows XP/windows7/Linux/Android

Memory

Onboard 2GB/4GB DDR3 memory

Lan

Onboard 1*Gigabit lan Port

Audio

Onboard  HDA ALC662

storage

1*MINISATA support SSD; 1*SATA3.0

Color

Black

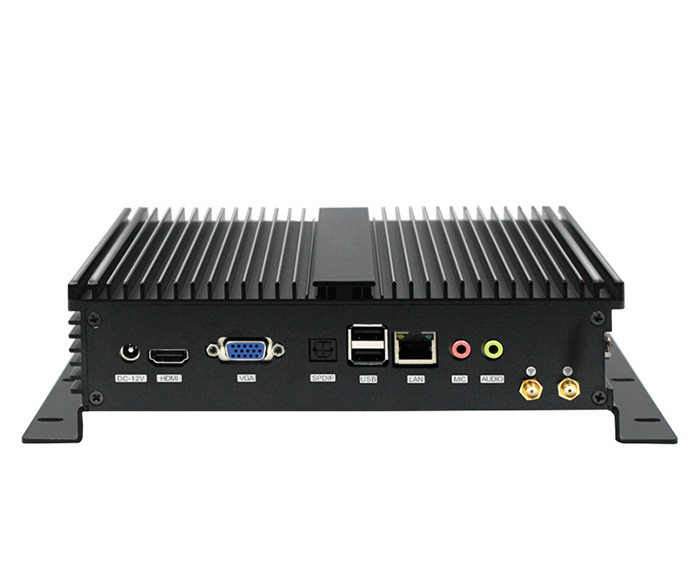

Front panel Port

1*HDMI 1*VGA 2*USB2.0 1*LAN 1*LINE OUT 1*MIC IN 2*WIFI antenna  1*SPDIF 1*DC

Side panel interface

2*COM(RS232) 2*COM(RS422/RS485) 2*USB2.0 1*GPIO 1*Switch button with indicator light

package

Box size :27.5*27*13cm  Gross weight 1.35KG  net weight 1.05KG

Model

description

CPU optional

TOP2550

Based on Intel Atom D2550+NM10 high speed chipset, with Intel

 Cedar Trail-D Atom dual core D2550 Processor (32nm,1.86GHz,1MBL2 Cache)                                                Onboard 2GB/4GB DDR3L Ram

D2550
