Processor

CPU

Support Intel Baytrail-I/D/M Processor (J1900 J1800)

RAM

Onboard 2GB\4GB DDR3 1066/1333MHz,1*RAM Slot,Max. to 8GB RAM optional

Storage

Onboard SSD16/32/64/128G（Optional）

SATA and MSATA，HDD and SSD（Optional）

Network

1*RTL8111E RJ45 1000M LAN

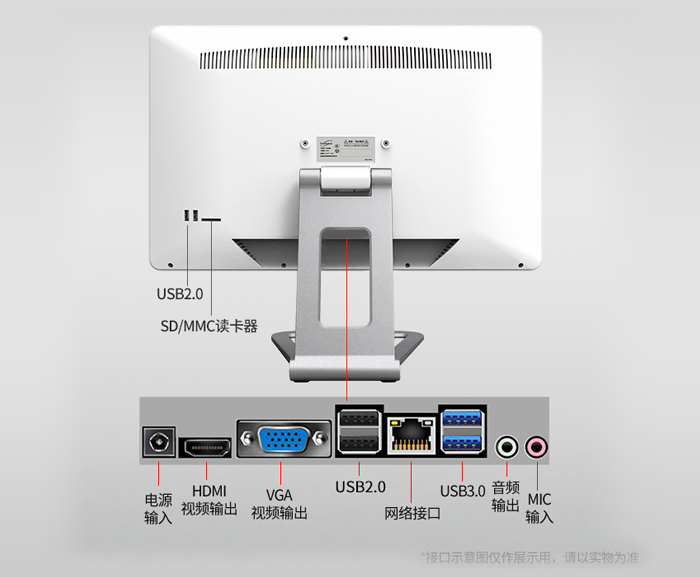

I/O ports

3*USB2.0,1*USB3.0，

1*LINE OUT 1*MIC，

1*POWER ON/OFF，1*VGA Maximum resolution 2048x1536 1*HDMI Maximum resolution 1920*1080@60HZ

1*DC interface

Expansion Bus

1*full size Mini PCIE slot

Watchdog

0-255second, Sample code optional

Physical characteristics

Size

510*425*55mm

Weight

5.50kg

OS Support

Operation System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

POWER SUPPLY

INPUT

Single input DC12V 5A   +/-5%

Power Consumption

20W

LCD Display

Display Type

21.5 LED display

Maximum  Resolutions

1920×1080

View

85/85/80/80(L/R/UP/DOWN)

Lumen (cd/m²)

350cd/m²

Contrast

1000:1

Backlight Life

30,000 hrs (Min.)

Environment

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative Humidity

0% ~ 90% Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI
