Model

FA-806H

Size

235*175.5*52mm

Processor

Intel Baytrail serial CPU（J1900/J1800/E3845）

Chipset

Intel Baytrail single chipset

memory

Onboard 2GB/4GB DDR3L Ram, max support 8G

Expansion slot

1 DDR3 SODIMM 204 Socket

Lan

6*Intel I211AT Gigabit（LAN1 and LAN2，LAN3 and LAN4 supports 2*Group Bypass , for optional）

storage

1*MINISATA   or  1*SATA（optional）

1*CF/Cfast

color

Sliver

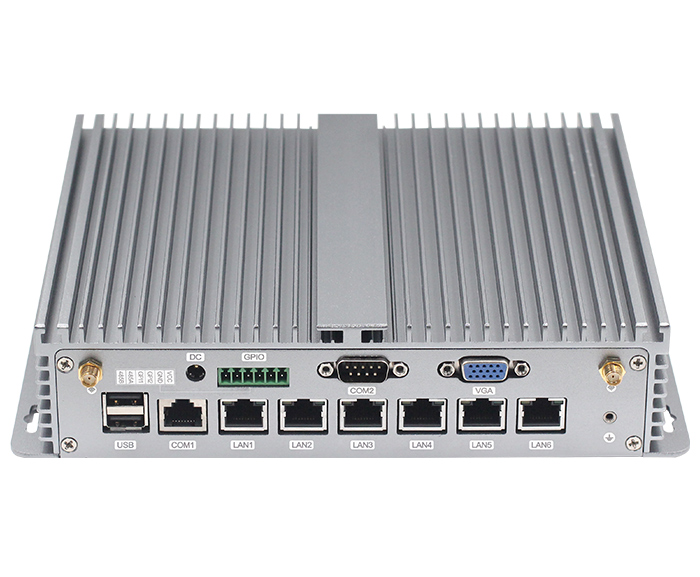

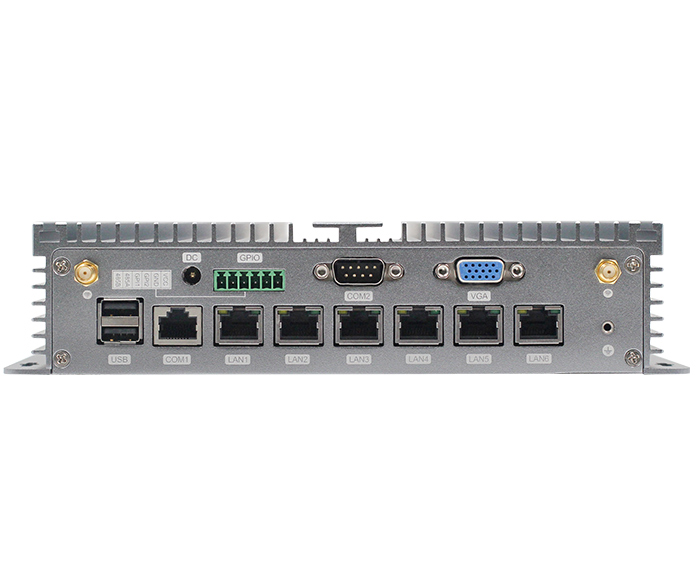

Panel interface

6*Intel I211ATlan Port

1*RS485 Phoenix terminal interface

4*GPIO Phoenix terminal interface

1*VGA

2*USB

1*DC

2*WIFI

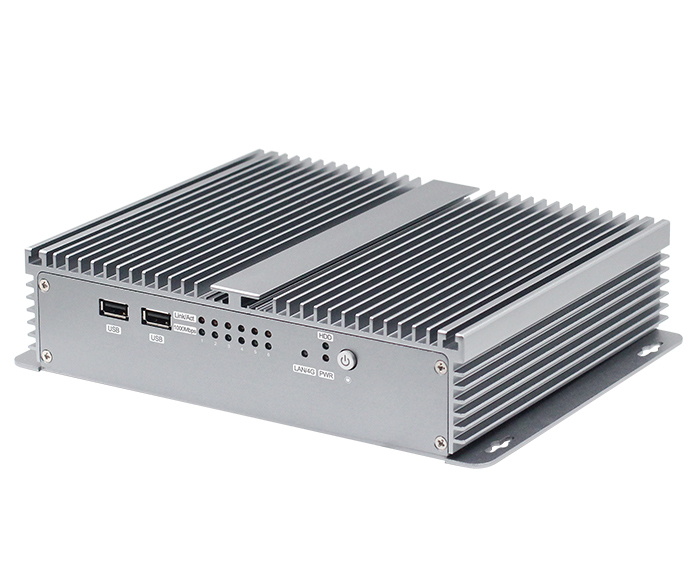

Front panel interface

1* switch button with indicator light

1* hard disk indicator

1* power indicator

1*4G module signal indicator

Operate system

Windows7 windows8 windows10  Linux OS
